General description:

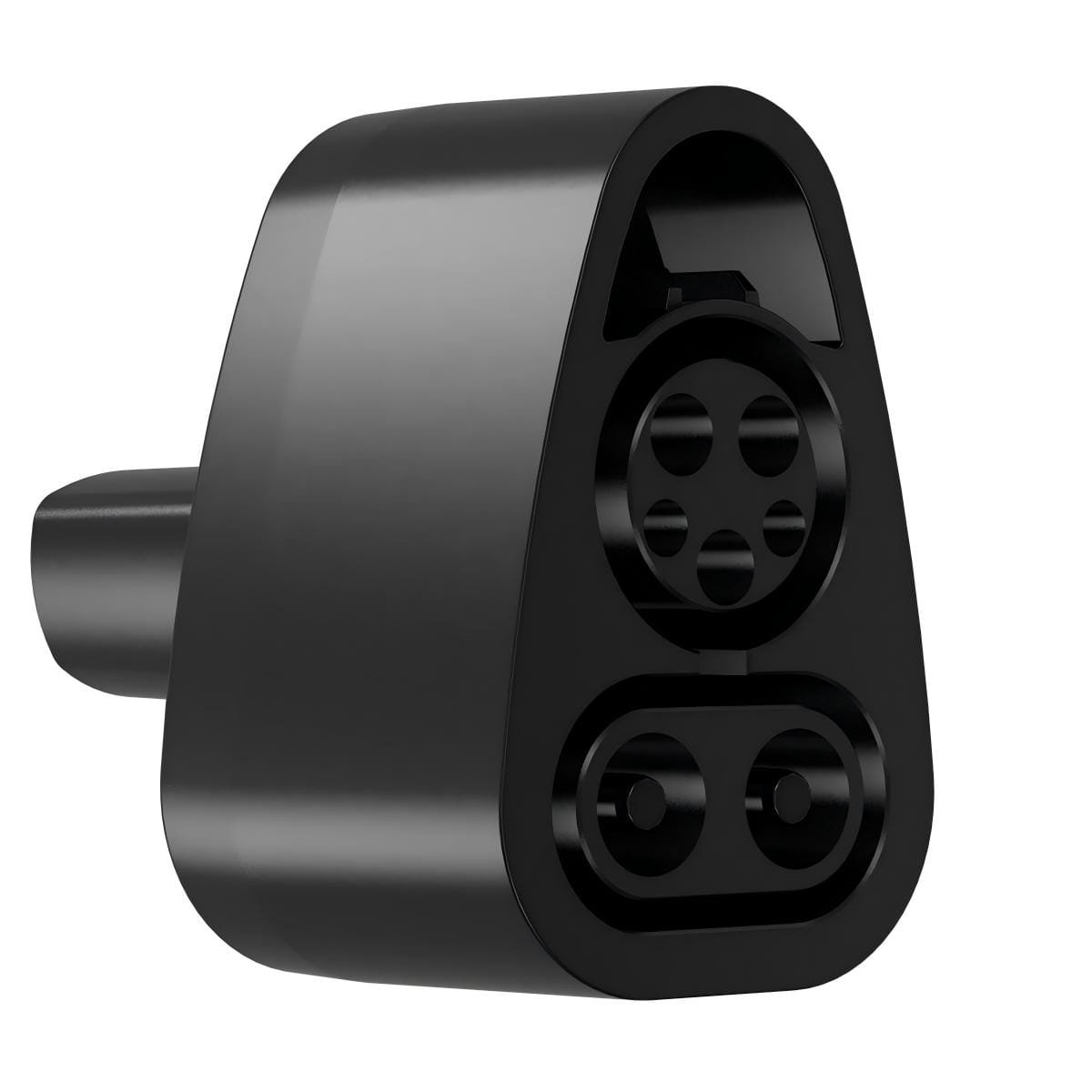

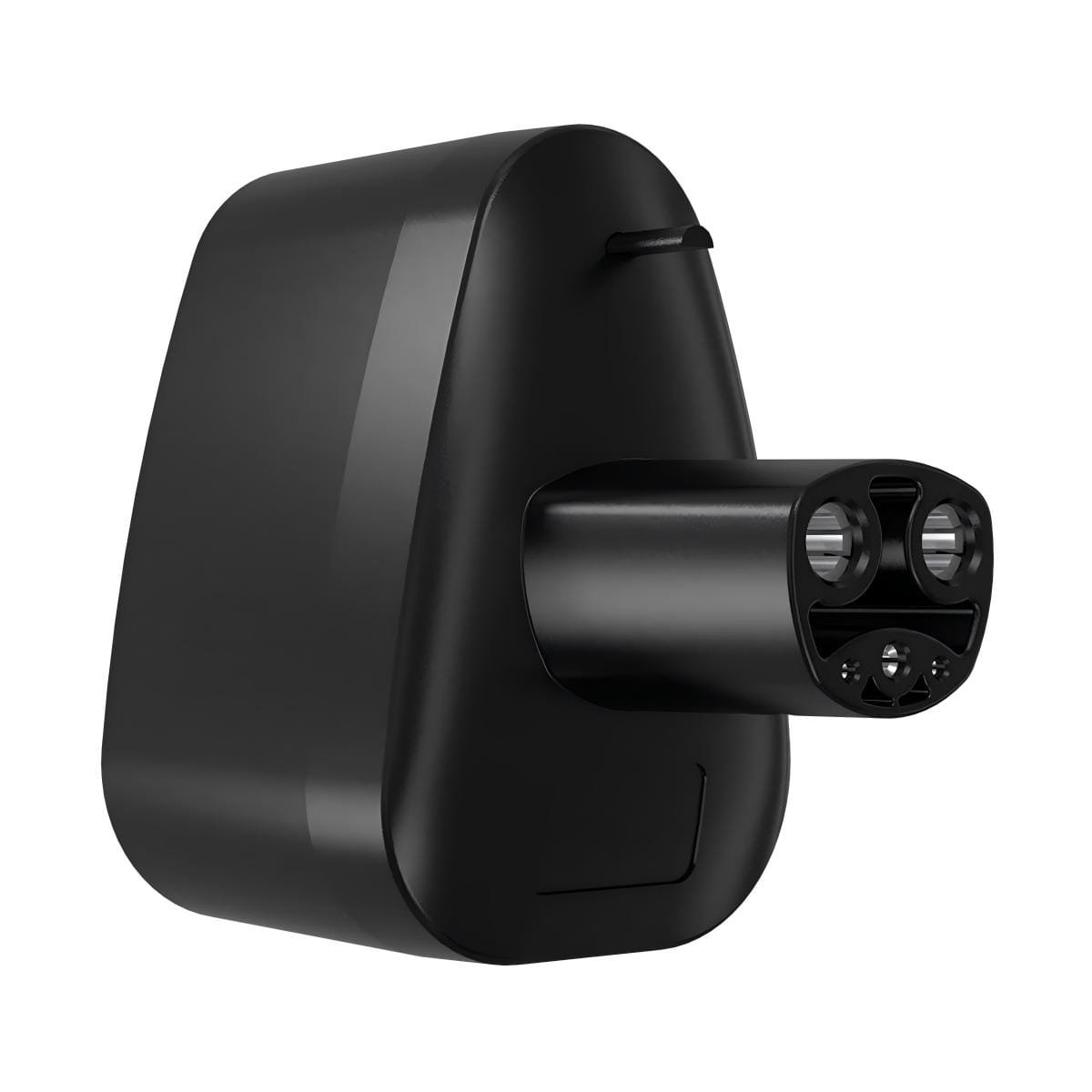

This adaptor is used to charge an EV with a Tesla socket on CCS 1 charging station.
Technical details:
Rated current: 250A
Rated voltage: 1000V DC
Insulation resistance: >1000MΩ(DC500V)
Terminal temperature rise:<50k Contact resistance : 0.5mΩ Max Mechanical life: no-load plug in/out >5000 times
Withstand voltage: 3200V
Operating temperature: -30℃～﹢50℃
